1. What is OBD-II?
OBD stands for On-Board Diagnostics. The second-generation system, OBD-II, became mandatory in the United States in 1996 and was adopted across European vehicles from 2001 onwards (petrol) and 2004 (diesel). It's now a standard feature on every modern car, van, and many commercial vehicles.
The OBD-II system monitors a range of vehicle systems in real time — primarily related to the engine, transmission, and exhaust emissions — and stores information about irregularities as fault codes. When the monitoring system detects a reading outside of its expected parameters, it logs a Diagnostic Trouble Code (DTC) and, if the fault is deemed significant enough, illuminates a warning light on the dashboard.
The standardised OBD-II port (a 16-pin connector) is usually found under the dashboard on the driver's side. Any compatible scan tool can connect to it and communicate with the vehicle's electronic control units.
2. Fault Code Categories
Fault codes follow a standardised five-character format. The first character indicates the system the code relates to, and this is a useful starting point for understanding what area of the vehicle is involved.
Engine, transmission, fuel system, and emissions. These are the most common codes and cover everything from oxygen sensor readings to misfire events.
Airbags, seatbelt pretensioners, climate control, and other body system components. Often relevant to safety systems.
ABS, traction control, steering, and suspension systems. These codes can directly affect vehicle handling and safety.
Communication faults between electronic control units. These can sometimes be symptoms of a broader wiring or module problem.
The second character indicates whether the code is a generic OBD-II standard code (0) or a manufacturer-specific code (1, 2, or 3). Generic codes are readable by any OBD-II scanner; manufacturer-specific codes may require more advanced tools that understand the particular vehicle's protocols.
3. What a Fault Code Actually Tells You
This is where many misunderstandings arise. A fault code tells you that a particular reading was outside expected parameters, and which sensor or circuit reported that reading. It does not, by itself, tell you what caused the problem.
A common example: an oxygen sensor fault code (P0136 or similar) is logged. This does not necessarily mean the oxygen sensor itself has failed. It could mean the sensor is correctly reporting a problem with the air/fuel mixture. It could mean a wiring fault is sending incorrect data to the ECU. Or the sensor itself may have genuinely failed.
Replacing a sensor simply because it generated a code — without further investigation — is a common and avoidable mistake. In some cases it resolves the issue; in others, the code returns because the underlying cause hasn't been addressed.
4. Live Data and Freeze Frame
A scan tool does more than read stored fault codes. Two other capabilities are particularly useful for diagnosis: live data and freeze frame data.
Live Data

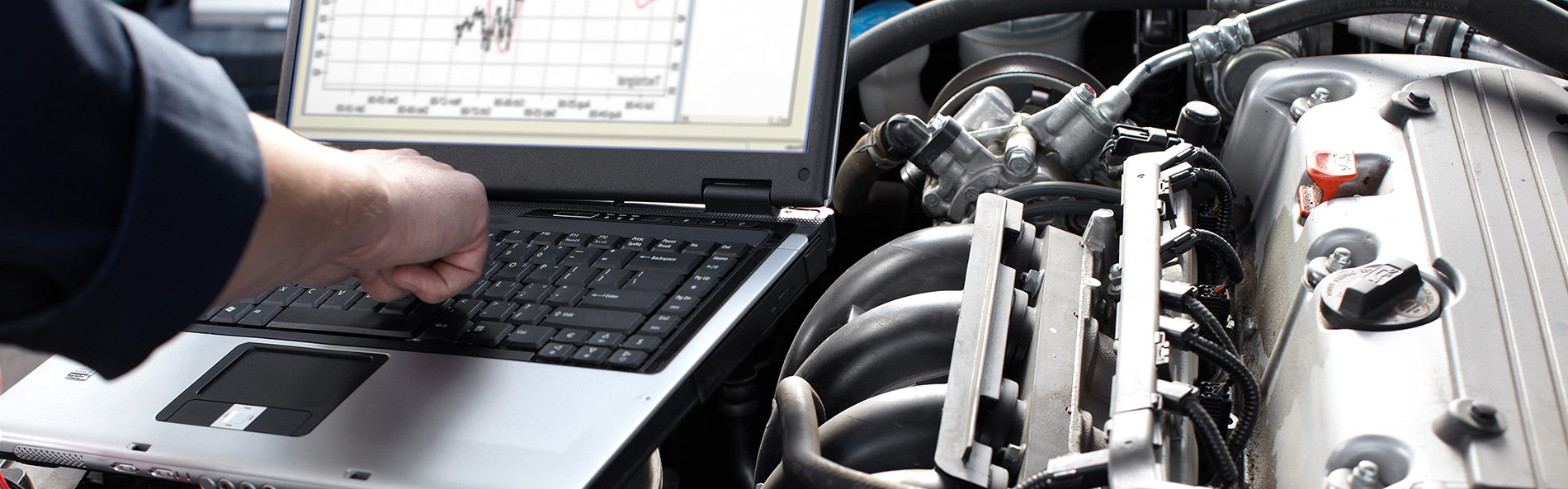

Live data is a real-time stream of information from the vehicle's sensors — engine speed, coolant temperature, oxygen sensor voltages, mass airflow readings, throttle position, and dozens of other parameters depending on the vehicle. A technician can watch this data while the engine is running and observe whether sensors are behaving correctly or producing readings that indicate a fault.
This is often more informative than a fault code alone, because it shows how the system is actually behaving rather than just that something was out of range at some point.
Freeze Frame Data
When a fault code is logged, many vehicles also capture a snapshot of sensor readings at the moment the fault occurred. This freeze frame data can be very useful for understanding the conditions under which a fault happened — for example, whether the engine was under load, what speed the vehicle was travelling, or what the coolant temperature was at the time.
5. Common Diagnostic Misunderstandings
There are a few patterns that appear regularly in vehicle fault finding, and being aware of them helps explain why thorough diagnosis takes time and why it doesn't always yield an instant answer.
Intermittent Faults
Some faults only occur under specific conditions — a certain temperature, a particular engine load, or when the vehicle has been running for a set period. Intermittent faults can be among the most time-consuming to diagnose because they may not be reproducible at the time of inspection. Freeze frame data and stored codes help, but in some cases the fault needs to be present for a reliable diagnosis to be made.
Multiple Codes
It's not unusual for a vehicle to present with several fault codes simultaneously. This can be misleading if each code is treated as a separate problem. In many cases, a single root cause — a failed sensor, a wiring fault, a mechanical issue — generates multiple codes across different systems. Reading each code in isolation risks addressing symptoms rather than the cause.
Cleared Codes Without Repair
Fault codes can be cleared from the system using a scan tool without making any repair. This is sometimes done to check whether a code was a one-off event or is persistent. However, a cleared code that returns confirms the fault is still present. If a vehicle has had codes cleared repeatedly without investigation, the history that would have assisted diagnosis is lost.
Basic OBD Readers vs Professional Tools
Consumer-grade OBD-II readers are widely available and inexpensive. They can read and clear generic fault codes, which has its uses. However, they typically can't read manufacturer-specific codes, access live data streams in detail, or communicate with non-powertrain systems such as ABS or airbags. Professional diagnostic tools — and the expertise to interpret what they show — provide a considerably more complete picture.
6. What a Proper Diagnostic Process Looks Like
A thorough diagnostic process generally involves several stages beyond code reading. It starts with understanding the reported symptoms — what the driver has noticed, when it happens, and under what conditions. Then codes are read and freeze frame data reviewed. Live data is observed with the engine running. In some cases, additional tests are carried out: electrical circuit testing, component resistance checks, pressure tests, or visual inspection of specific components.
Only once the information from all of these stages has been considered does a confident diagnosis become possible. This process takes time, and it's one of the reasons diagnostic labour charges exist independently of the cost of parts.
Summary
OBD-II diagnostics is a powerful tool, but it works best when used as part of a broader fault-finding process rather than as a shortcut. Fault codes identify where to look, not necessarily what to fix. Understanding this distinction helps explain why a proper diagnostic assessment takes time, why codes alone don't always lead directly to a solution, and why working with a technician who uses the full range of available data generally leads to more reliable outcomes.
